ADOT with AMP and AMG

This tutorial demonstrates how to config the ADOT package to scrape metrics from an EKS Anywhere cluster, and send them to Amazon Managed Service for Prometheus (AMP) and Amazon Managed Grafana (AMG).

This tutorial walks through the following procedures:

Create an AMP workspace

An AMP workspace is created to receive metrics from the ADOT package, and respond to query requests from AMG. Follow steps below to complete the set up:

  1. Open the AMP console at https://console.aws.amazon.com/prometheus/.

  2. Choose region us-west-2 from the top right corner.

  3. Click on Create to create a workspace.

  4. Type a workspace alias (adot-amp-test as an example), and click on Create workspace.

    ADOT AMP Create Workspace

  5. Make notes of the URLs displayed for Endpoint - remote write URL and Endpoint - query URL. You’ll need them when you configure your ADOT package to remote write metrics to this workspace and when you query metrics from this workspace. Make sure the workspace’s Status shows Active before proceeding to the next step.

    ADOT AMP Identify URLs

For additional options (i.e. through CLI) and configurations (i.e. add a tag) to create an AMP workspace, refer to AWS AMP create a workspace guide.

Setup IRSA for ADOT

If you haven’t already configured IRSA for your cluster, follow the EKS Anywhere cluster spec for Pod IAM guide. This one-time setup includes creating an OIDC provider, configuring your cluster, generating keys, and deploying the pod-identity-webhook.

After IRSA infrastructure is configured, create an IAM role for ADOT. Replace <ACCOUNT_ID>, <ISSUER_HOSTPATH> with your values:

  1. Create an IAM role with a trust policy that allows the ADOT ServiceAccount to assume it:

    {
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Principal": {
                "Federated": "arn:aws:iam::<ACCOUNT_ID>:oidc-provider/<ISSUER_HOSTPATH>"
            },
            "Action": "sts:AssumeRoleWithWebIdentity",
            "Condition": {
                "StringEquals": {
                    "<ISSUER_HOSTPATH>:sub": "system:serviceaccount:observability:adot-collector",
                    "<ISSUER_HOSTPATH>:aud": "sts.amazonaws.com"
                }
            }
        }
    ]
}

  2. Attach an IAM policy with proper AMP access to the IAM role. Below is an example that gives full access to AMP actions and resources. Refer to AMP IAM permissions and policies guide for more customized options.

    {
    "Version": "2012-10-17",
    "Statement": [
        {
            "Action": [
                "aps:*"
            ],
            "Effect": "Allow",
            "Resource": "*"
        }
    ]
}

  3. Save the IAM role ARN (e.g., arn:aws:iam::123456789012:role/adot-amp-role). You’ll use this in the ADOT package configuration below.

Install the ADOT package

The ADOT package will be configured with three main components:

  1. Prometheus Receiver: Designed to be a drop-in replacement for a Prometheus Server, capable of scraping metrics from microservices instrumented with the Prometheus client library

  2. Prometheus Remote Write Exporter: Sends metrics to AMP for long-term storage using the remote write protocol

  3. Sigv4 Authentication Extension: Enables ADOT pods to authenticate to AWS services using the IAM role configured via IRSA

The ADOT package can be configured using presets for automatic collector and RBAC setup, explicit rules and config, or both combined.

Using Presets

This approach uses the ADOT helm chart’s preset feature to automatically configure collectors and RBAC permissions.

  1. Create an ADOT package configuration file named adot-package.yaml. Review comments carefully and replace everything wrapped with <> tags.

    Click to expand ADOT package config with presets
    apiVersion: packages.eks.amazonaws.com/v1alpha1
kind: Package
metadata:
  name: my-adot
  namespace: eksa-packages
spec:
  packageName: adot
  targetNamespace: observability
  config: |
    mode: deployment

    serviceAccount:
      create: true
      annotations:
        eks.amazonaws.com/role-arn: "<IAM-ROLE-ARN>"
      name: "adot-collector"

    presets:
      kubernetesAttributes:
        enabled: true
      kubeletMetrics:
        enabled: true

    clusterRole:
      create: true

    config:
      extensions:
        sigv4auth:
          region: "us-west-2"
          service: "aps"
          assume_role:
            sts_region: "us-west-2"

      receivers:
        prometheus:
          config:
            global:
              scrape_interval: 15s
              scrape_timeout: 10s
            scrape_configs:
            - job_name: kubernetes-apiservers
              bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token
              kubernetes_sd_configs:
              - role: endpoints
              relabel_configs:
              - action: keep
                regex: default;kubernetes;https
                source_labels:
                - __meta_kubernetes_namespace
                - __meta_kubernetes_service_name
                - __meta_kubernetes_endpoint_port_name
              scheme: https
              tls_config:
                ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
                insecure_skip_verify: false
            - job_name: kubernetes-nodes
              bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token
              kubernetes_sd_configs:
              - role: node
              relabel_configs:
              - action: labelmap
                regex: __meta_kubernetes_node_label_(.+)
              - replacement: kubernetes.default.svc:443
                target_label: __address__
              - regex: (.+)
                replacement: /api/v1/nodes/$$1/proxy/metrics
                source_labels:
                - __meta_kubernetes_node_name
                target_label: __metrics_path__
              scheme: https
              tls_config:
                ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
                insecure_skip_verify: false
            - job_name: kubernetes-service-endpoints
              kubernetes_sd_configs:
              - role: endpoints
              relabel_configs:
              - action: keep
                regex: true
                source_labels:
                - __meta_kubernetes_service_annotation_prometheus_io_scrape
              - action: replace
                regex: (https?)
                source_labels:
                - __meta_kubernetes_service_annotation_prometheus_io_scheme
                target_label: __scheme__
              - action: replace
                regex: (.+)
                source_labels:
                - __meta_kubernetes_service_annotation_prometheus_io_path
                target_label: __metrics_path__
              - action: replace
                regex: ([^:]+)(?::\d+)?;(\d+)
                replacement: $$1:$$2
                source_labels:
                - __address__
                - __meta_kubernetes_service_annotation_prometheus_io_port
                target_label: __address__
              - action: labelmap
                regex: __meta_kubernetes_service_label_(.+)
              - action: replace
                source_labels:
                - __meta_kubernetes_namespace
                target_label: kubernetes_namespace
              - action: replace
                source_labels:
                - __meta_kubernetes_service_name
                target_label: kubernetes_name

      processors:
        batch/metrics:
          timeout: 60s

      exporters:
        debug:
          verbosity: detailed
        prometheusremotewrite:
          endpoint: "<AMP-WORKSPACE-ENDPOINT>/api/v1/remote_write"  # Replace with your AMP workspace remote write endpoint
          auth:
            authenticator: sigv4auth

      service:
        extensions:
          - health_check
          - sigv4auth
        pipelines:
          metrics:
            receivers: [prometheus]
            processors: [batch/metrics]
            exporters: [debug, prometheusremotewrite]

  2. Install the ADOT package using the configuration file:

    eksctl anywhere create packages -f adot-package.yaml

Using Explicit RBAC Rules

For custom configurations, you can explicitly define ClusterRole rules in your package configuration.

  1. Create an ADOT package configuration file named adot-package.yaml with explicit RBAC rules. Review comments carefully and replace everything wrapped with <> tags.

    Click to expand ADOT package config with explicit rules
    apiVersion: packages.eks.amazonaws.com/v1alpha1
kind: Package
metadata:
  name: my-adot
  namespace: eksa-packages
spec:
  packageName: adot
  targetNamespace: observability
  config: |
    mode: deployment

    serviceAccount:
      create: true
      annotations:
        eks.amazonaws.com/role-arn: "<IAM-ROLE-ARN>"
      name: "adot-collector"

    clusterRole:
      create: true
      rules:
        - apiGroups: [""]
          resources:
            - nodes
            - nodes/proxy
            - services
            - endpoints
            - pods
          verbs: ["get", "list", "watch"]
        - apiGroups: ["extensions"]
          resources:
            - ingresses
          verbs: ["get", "list", "watch"]
        - apiGroups: ["discovery.k8s.io"]
          resources:
            - endpointslices
          verbs: ["get", "list", "watch"]
        - nonResourceURLs:
            - /metrics
          verbs: ["get"]

    config:
      extensions:
        sigv4auth:
          region: "us-west-2"
          service: "aps"
          assume_role:
            sts_region: "us-west-2"

      receivers:
        prometheus:
          config:
            global:
              scrape_interval: 15s
              scrape_timeout: 10s
            scrape_configs:
            - job_name: kubernetes-apiservers
              bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token
              kubernetes_sd_configs:
              - role: endpoints
              relabel_configs:
              - action: keep
                regex: default;kubernetes;https
                source_labels:
                - __meta_kubernetes_namespace
                - __meta_kubernetes_service_name
                - __meta_kubernetes_endpoint_port_name
              scheme: https
              tls_config:
                ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
                insecure_skip_verify: false
            - job_name: kubernetes-nodes
              bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token
              kubernetes_sd_configs:
              - role: node
              relabel_configs:
              - action: labelmap
                regex: __meta_kubernetes_node_label_(.+)
              - replacement: kubernetes.default.svc:443
                target_label: __address__
              - regex: (.+)
                replacement: /api/v1/nodes/$$1/proxy/metrics
                source_labels:
                - __meta_kubernetes_node_name
                target_label: __metrics_path__
              scheme: https
              tls_config:
                ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
                insecure_skip_verify: false
            - job_name: kubernetes-nodes-cadvisor
              bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token
              kubernetes_sd_configs:
              - role: node
              relabel_configs:
              - action: labelmap
                regex: __meta_kubernetes_node_label_(.+)
              - replacement: kubernetes.default.svc:443
                target_label: __address__
              - regex: (.+)
                replacement: /api/v1/nodes/$$1/proxy/metrics/cadvisor
                source_labels:
                - __meta_kubernetes_node_name
                target_label: __metrics_path__
              scheme: https
              tls_config:
                ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
                insecure_skip_verify: false
            - job_name: kubernetes-service-endpoints
              kubernetes_sd_configs:
              - role: endpoints
              relabel_configs:
              - action: keep
                regex: true
                source_labels:
                - __meta_kubernetes_service_annotation_prometheus_io_scrape
              - action: replace
                regex: (https?)
                source_labels:
                - __meta_kubernetes_service_annotation_prometheus_io_scheme
                target_label: __scheme__
              - action: replace
                regex: (.+)
                source_labels:
                - __meta_kubernetes_service_annotation_prometheus_io_path
                target_label: __metrics_path__
              - action: replace
                regex: ([^:]+)(?::\d+)?;(\d+)
                replacement: $$1:$$2
                source_labels:
                - __address__
                - __meta_kubernetes_service_annotation_prometheus_io_port
                target_label: __address__
              - action: labelmap
                regex: __meta_kubernetes_service_annotation_prometheus_io_param_(.+)
                replacement: __param_$$1
              - action: labelmap
                regex: __meta_kubernetes_service_label_(.+)
              - action: replace
                source_labels:
                - __meta_kubernetes_namespace
                target_label: kubernetes_namespace
              - action: replace
                source_labels:
                - __meta_kubernetes_service_name
                target_label: kubernetes_name
              - action: replace
                source_labels:
                - __meta_kubernetes_pod_node_name
                target_label: kubernetes_node
            - job_name: kubernetes-service-endpoints-slow
              kubernetes_sd_configs:
              - role: endpoints
              relabel_configs:
              - action: keep
                regex: true
                source_labels:
                - __meta_kubernetes_service_annotation_prometheus_io_scrape_slow
              - action: replace
                regex: (https?)
                source_labels:
                - __meta_kubernetes_service_annotation_prometheus_io_scheme
                target_label: __scheme__
              - action: replace
                regex: (.+)
                source_labels:
                - __meta_kubernetes_service_annotation_prometheus_io_path
                target_label: __metrics_path__
              - action: replace
                regex: ([^:]+)(?::\d+)?;(\d+)
                replacement: $$1:$$2
                source_labels:
                - __address__
                - __meta_kubernetes_service_annotation_prometheus_io_port
                target_label: __address__
              - action: labelmap
                regex: __meta_kubernetes_service_annotation_prometheus_io_param_(.+)
                replacement: __param_$$1
              - action: labelmap
                regex: __meta_kubernetes_service_label_(.+)
              - action: replace
                source_labels:
                - __meta_kubernetes_namespace
                target_label: kubernetes_namespace
              - action: replace
                source_labels:
                - __meta_kubernetes_service_name
                target_label: kubernetes_name
              - action: replace
                source_labels:
                - __meta_kubernetes_pod_node_name
                target_label: kubernetes_node
              scrape_interval: 5m
              scrape_timeout: 30s
            - job_name: prometheus-pushgateway
              kubernetes_sd_configs:
              - role: service
              relabel_configs:
              - action: keep
                regex: pushgateway
                source_labels:
                - __meta_kubernetes_service_annotation_prometheus_io_probe
            - job_name: kubernetes-services
              kubernetes_sd_configs:
              - role: service
              metrics_path: /probe
              params:
                module:
                - http_2xx
              relabel_configs:
              - action: keep
                regex: true
                source_labels:
                - __meta_kubernetes_service_annotation_prometheus_io_probe
              - source_labels:
                - __address__
                target_label: __param_target
              - replacement: blackbox
                target_label: __address__
              - source_labels:
                - __param_target
                target_label: instance
              - action: labelmap
                regex: __meta_kubernetes_service_label_(.+)
              - source_labels:
                - __meta_kubernetes_namespace
                target_label: kubernetes_namespace
              - source_labels:
                - __meta_kubernetes_service_name
                target_label: kubernetes_name
            - job_name: kubernetes-pods
              kubernetes_sd_configs:
              - role: pod
              relabel_configs:
              - action: keep
                regex: true
                source_labels:
                - __meta_kubernetes_pod_annotation_prometheus_io_scrape
              - action: replace
                regex: (https?)
                source_labels:
                - __meta_kubernetes_pod_annotation_prometheus_io_scheme
                target_label: __scheme__
              - action: replace
                regex: (.+)
                source_labels:
                - __meta_kubernetes_pod_annotation_prometheus_io_path
                target_label: __metrics_path__
              - action: replace
                regex: ([^:]+)(?::\d+)?;(\d+)
                replacement: $$1:$$2
                source_labels:
                - __address__
                - __meta_kubernetes_pod_annotation_prometheus_io_port
                target_label: __address__
              - action: labelmap
                regex: __meta_kubernetes_pod_annotation_prometheus_io_param_(.+)
                replacement: __param_$$1
              - action: labelmap
                regex: __meta_kubernetes_pod_label_(.+)
              - action: replace
                source_labels:
                - __meta_kubernetes_namespace
                target_label: kubernetes_namespace
              - action: replace
                source_labels:
                - __meta_kubernetes_pod_name
                target_label: kubernetes_pod_name
              - action: drop
                regex: Pending|Succeeded|Failed|Completed
                source_labels:
                - __meta_kubernetes_pod_phase
            - job_name: kubernetes-pods-slow
              scrape_interval: 5m
              scrape_timeout: 30s
              kubernetes_sd_configs:
              - role: pod
              relabel_configs:
              - action: keep
                regex: true
                source_labels:
                - __meta_kubernetes_pod_annotation_prometheus_io_scrape_slow
              - action: replace
                regex: (https?)
                source_labels:
                - __meta_kubernetes_pod_annotation_prometheus_io_scheme
                target_label: __scheme__
              - action: replace
                regex: (.+)
                source_labels:
                - __meta_kubernetes_pod_annotation_prometheus_io_path
                target_label: __metrics_path__
              - action: replace
                regex: ([^:]+)(?::\d+)?;(\d+)
                replacement: $$1:$$2
                source_labels:
                - __address__
                - __meta_kubernetes_pod_annotation_prometheus_io_port
                target_label: __address__
              - action: labelmap
                regex: __meta_kubernetes_pod_annotation_prometheus_io_param_(.+)
                replacement: __param_$1
              - action: labelmap
                regex: __meta_kubernetes_pod_label_(.+)
              - action: replace
                source_labels:
                - __meta_kubernetes_namespace
                target_label: namespace
              - action: replace
                source_labels:
                - __meta_kubernetes_pod_name
                target_label: pod
              - action: drop
                regex: Pending|Succeeded|Failed|Completed
                source_labels:
                - __meta_kubernetes_pod_phase

      processors:
        batch/metrics:
          timeout: 60s

      exporters:
        debug:
          verbosity: detailed
        prometheusremotewrite:
          endpoint: "<AMP-WORKSPACE-ENDPOINT>/api/v1/remote_write"  # Replace with your AMP workspace remote write endpoint
          auth:
            authenticator: sigv4auth

      service:
        extensions:
          - health_check
          - sigv4auth
        pipelines:
          metrics:
            receivers: [prometheus]
            processors: [batch/metrics]
            exporters: [debug, prometheusremotewrite]

  2. Install the ADOT package:

    eksctl anywhere create packages -f adot-package.yaml

Available Presets

The ADOT helm chart provides several presets that automatically configure both collector features and RBAC permissions:

Preset Description Auto-Added RBAC Rules
kubernetesAttributes Adds Kubernetes metadata (pod, namespace, etc.) to metrics pods, namespaces, replicasets (apps & extensions)
kubeletMetrics Collects metrics from kubelet nodes/stats
clusterMetrics Collects cluster-level metrics events, namespaces, nodes, pods, services, daemonsets, deployments, replicasets, statefulsets, jobs, cronjobs, horizontalpodautoscalers
kubernetesEvents Collects Kubernetes events events (events.k8s.io apiGroup)
logsCollection Collects logs from nodes (best with daemonset mode) None (requires host access)
hostMetrics Collects host-level metrics (best with daemonset mode) None (requires host access)

For more details on presets, refer to the OpenTelemetry Collector Kubernetes Components documentation .

ADOT Package Test

To ensure the ADOT package is installed correctly in the cluster, perform the following tests:

Check pod logs

Check ADOT pod logs using kubectl logs <adot-pod-name> -n <namespace>. It should display logs similar to below.

...
2022-09-30T23:22:59.184Z	info	service/telemetry.go:103	Setting up own telemetry...
2022-09-30T23:22:59.184Z	info	service/telemetry.go:138	Serving Prometheus metrics	{"address": "0.0.0.0:8888", "level": "basic"}
2022-09-30T23:22:59.185Z	info	components/components.go:30	In development component. May change in the future.	{"kind": "exporter", "data_type": "metrics", "name": "logging", "stability": "in development"}
2022-09-30T23:22:59.186Z	info	extensions/extensions.go:42	Starting extensions...
2022-09-30T23:22:59.186Z	info	extensions/extensions.go:45	Extension is starting...	{"kind": "extension", "name": "health_check"}
2022-09-30T23:22:59.186Z	info	healthcheckextension@v0.58.0/healthcheckextension.go:44	Starting health_check extension	{"kind": "extension", "name": "health_check", "config": {"Endpoint":"0.0.0.0:13133","TLSSetting":null,"CORS":null,"Auth":null,"MaxRequestBodySize":0,"IncludeMetadata":false,"Path":"/","CheckCollectorPipeline":{"Enabled":false,"Interval":"5m","ExporterFailureThreshold":5}}}
2022-09-30T23:22:59.186Z	info	extensions/extensions.go:49	Extension started.	{"kind": "extension", "name": "health_check"}
2022-09-30T23:22:59.186Z	info	extensions/extensions.go:45	Extension is starting...	{"kind": "extension", "name": "memory_ballast"}
2022-09-30T23:22:59.187Z	info	ballastextension/memory_ballast.go:52	Setting memory ballast	{"kind": "extension", "name": "memory_ballast", "MiBs": 0}
2022-09-30T23:22:59.187Z	info	extensions/extensions.go:49	Extension started.	{"kind": "extension", "name": "memory_ballast"}
2022-09-30T23:22:59.187Z	info	extensions/extensions.go:45	Extension is starting...	{"kind": "extension", "name": "sigv4auth"}
2022-09-30T23:22:59.187Z	info	extensions/extensions.go:49	Extension started.	{"kind": "extension", "name": "sigv4auth"}
2022-09-30T23:22:59.187Z	info	pipelines/pipelines.go:74	Starting exporters...
2022-09-30T23:22:59.187Z	info	pipelines/pipelines.go:78	Exporter is starting...	{"kind": "exporter", "data_type": "metrics", "name": "logging"}
2022-09-30T23:22:59.187Z	info	pipelines/pipelines.go:82	Exporter started.	{"kind": "exporter", "data_type": "metrics", "name": "logging"}
2022-09-30T23:22:59.187Z	info	pipelines/pipelines.go:78	Exporter is starting...	{"kind": "exporter", "data_type": "metrics", "name": "prometheusremotewrite"}
2022-09-30T23:22:59.187Z	info	pipelines/pipelines.go:82	Exporter started.	{"kind": "exporter", "data_type": "metrics", "name": "prometheusremotewrite"}
2022-09-30T23:22:59.187Z	info	pipelines/pipelines.go:86	Starting processors...
2022-09-30T23:22:59.187Z	info	pipelines/pipelines.go:90	Processor is starting...	{"kind": "processor", "name": "batch/metrics", "pipeline": "metrics"}
2022-09-30T23:22:59.187Z	info	pipelines/pipelines.go:94	Processor started.	{"kind": "processor", "name": "batch/metrics", "pipeline": "metrics"}
2022-09-30T23:22:59.187Z	info	pipelines/pipelines.go:98	Starting receivers...
2022-09-30T23:22:59.187Z	info	pipelines/pipelines.go:102	Receiver is starting...	{"kind": "receiver", "name": "prometheus", "pipeline": "metrics"}
2022-09-30T23:22:59.187Z	info	kubernetes/kubernetes.go:326	Using pod service account via in-cluster config	{"kind": "receiver", "name": "prometheus", "pipeline": "metrics", "discovery": "kubernetes"}
2022-09-30T23:22:59.188Z	info	kubernetes/kubernetes.go:326	Using pod service account via in-cluster config	{"kind": "receiver", "name": "prometheus", "pipeline": "metrics", "discovery": "kubernetes"}
2022-09-30T23:22:59.188Z	info	kubernetes/kubernetes.go:326	Using pod service account via in-cluster config	{"kind": "receiver", "name": "prometheus", "pipeline": "metrics", "discovery": "kubernetes"}
2022-09-30T23:22:59.188Z	info	kubernetes/kubernetes.go:326	Using pod service account via in-cluster config	{"kind": "receiver", "name": "prometheus", "pipeline": "metrics", "discovery": "kubernetes"}
2022-09-30T23:22:59.189Z	info	pipelines/pipelines.go:106	Receiver started.	{"kind": "receiver", "name": "prometheus", "pipeline": "metrics"}
2022-09-30T23:22:59.189Z	info	healthcheck/handler.go:129	Health Check state change	{"kind": "extension", "name": "health_check", "status": "ready"}
2022-09-30T23:22:59.189Z	info	service/collector.go:215	Starting aws-otel-collector...	{"Version": "v0.21.1", "NumCPU": 2}
2022-09-30T23:22:59.189Z	info	service/collector.go:128	Everything is ready. Begin running and processing data.
...

Check AMP endpoint using awscurl

Use awscurl commands below to check if AMP received the metrics data sent by ADOT. The awscurl tool is a curl like tool with AWS Signature Version 4 request signing. The command below should return a status code success.

pip install awscurl
awscurl -X POST --region us-west-2 --service aps "<amp-query-endpoint>?query=up"

Create an AMG workspace and connect to the AMP workspace

An AMG workspace is created to query metrics from the AMP workspace and visualize the metrics in user-selected or user-built dashboards.

Follow steps below to create the AMG workspace:

  1. Enable AWS Single-Sign-on (AWS SSO). Refer to IAM Identity Center for details.

  2. Open the Amazon Managed Grafana console at https://console.aws.amazon.com/grafana/.

  3. Choose Create workspace.

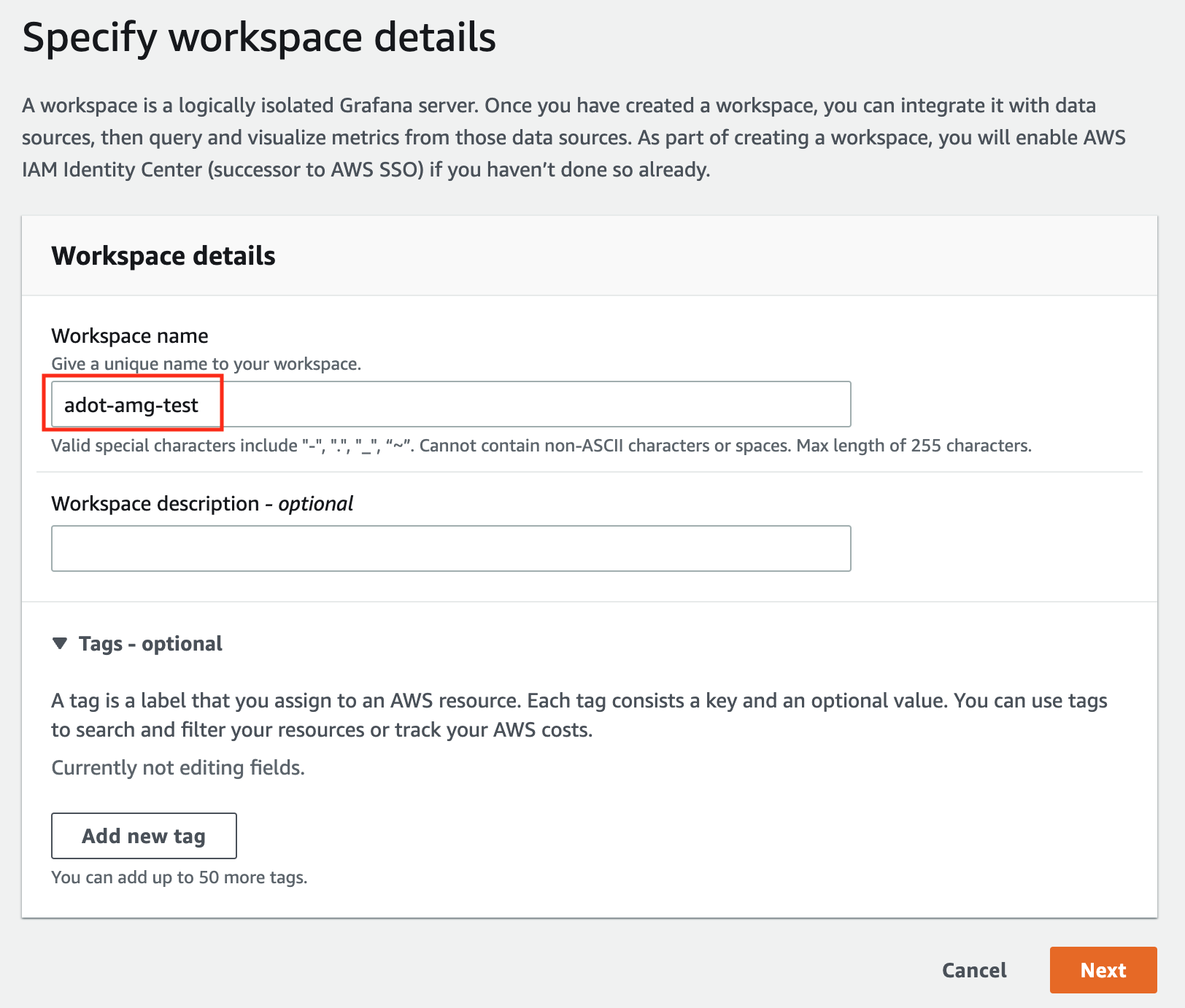

  4. In the Workspace details window, for Workspace name, enter a name for the workspace.

    ADOT AMG Workspace Details

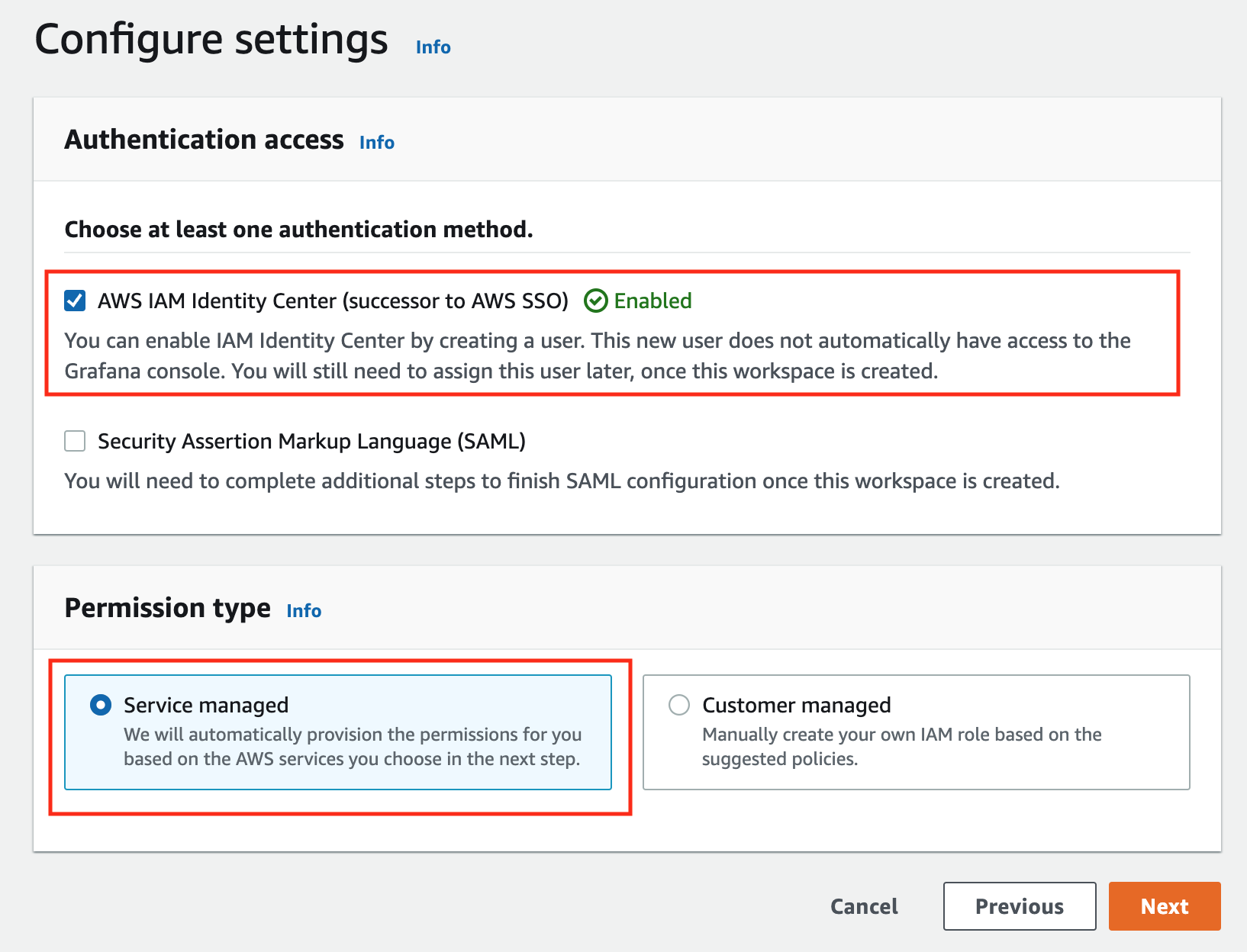

  5. In the config settings window, choose Authentication access by AWS IAM Identity Center, and Permission type of Service managed.

    ADOT AMG Workspace Configure Settings

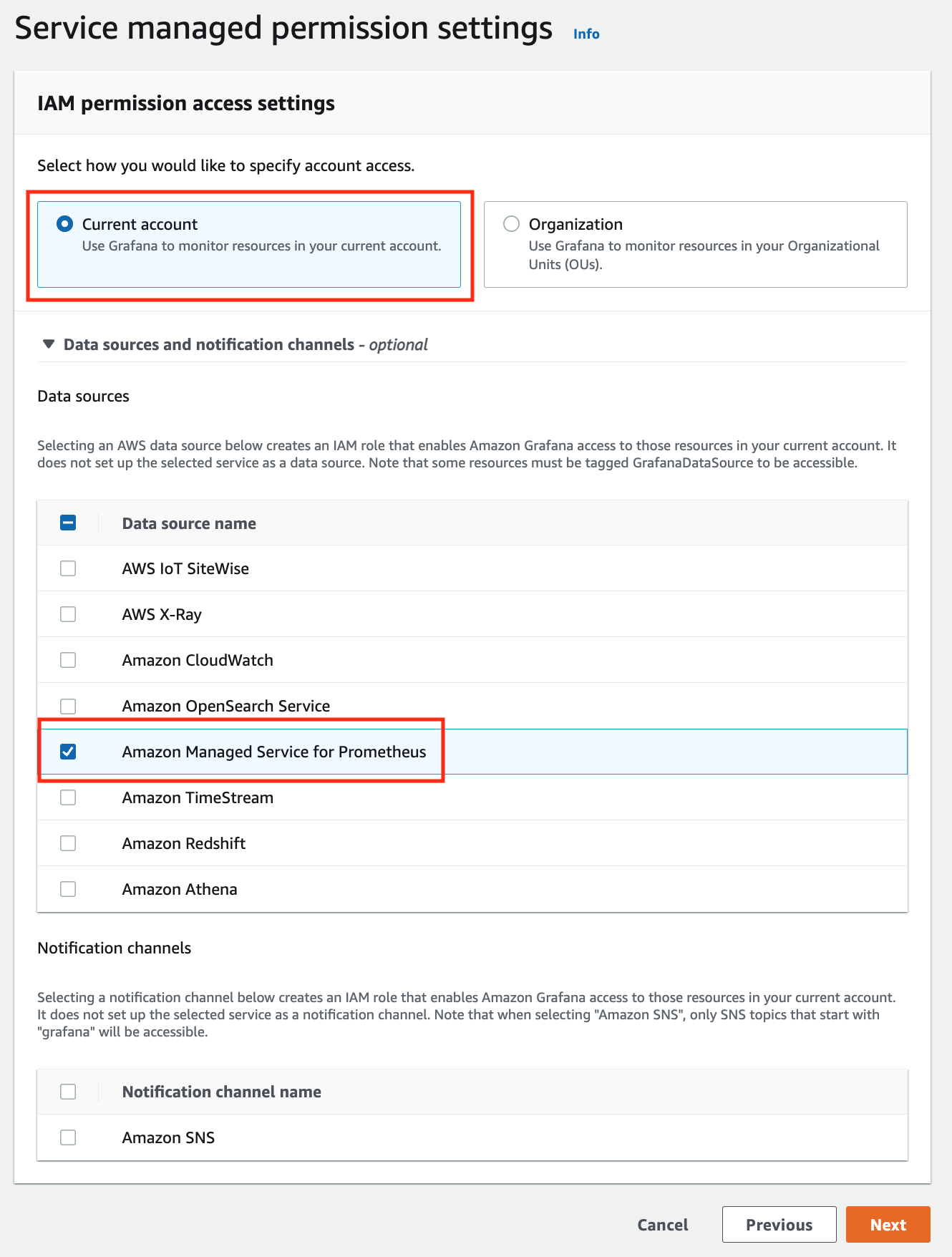

  6. In the IAM permission access setting window, choose Current account access, and Amazon Managed Service for Prometheus as data source.

    ADOT AMG Workspace Permission Settings

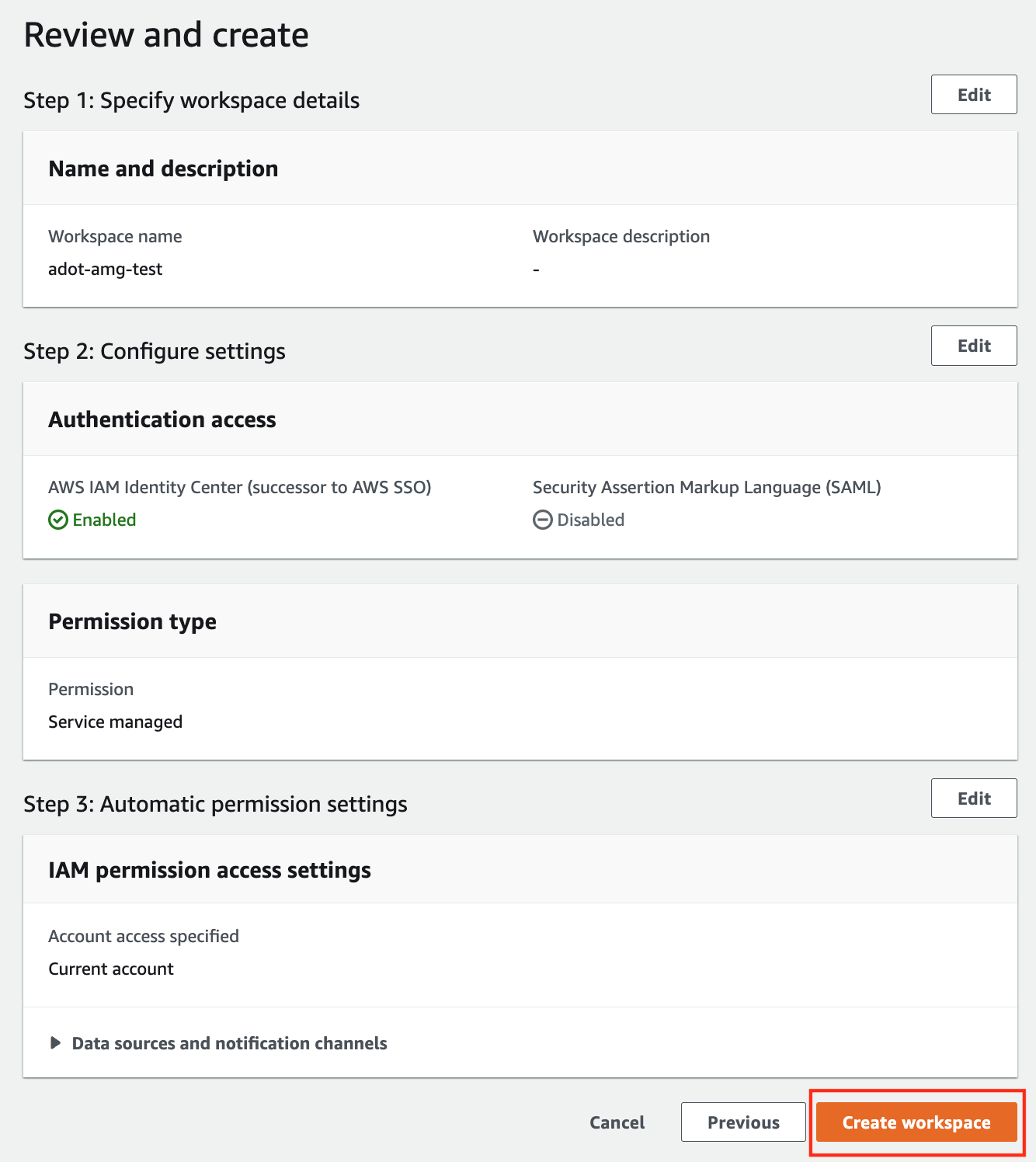

  7. Review all settings and click on Create workspace.

    ADOT AMG Workspace Review and Create

  8. Once the workspace shows a Status of Active, you can access it by clicking the Grafana workspace URL. Click on Sign in with AWS IAM Identity Center to finish the authentication.

Follow steps below to add the AMP workspace to AMG:

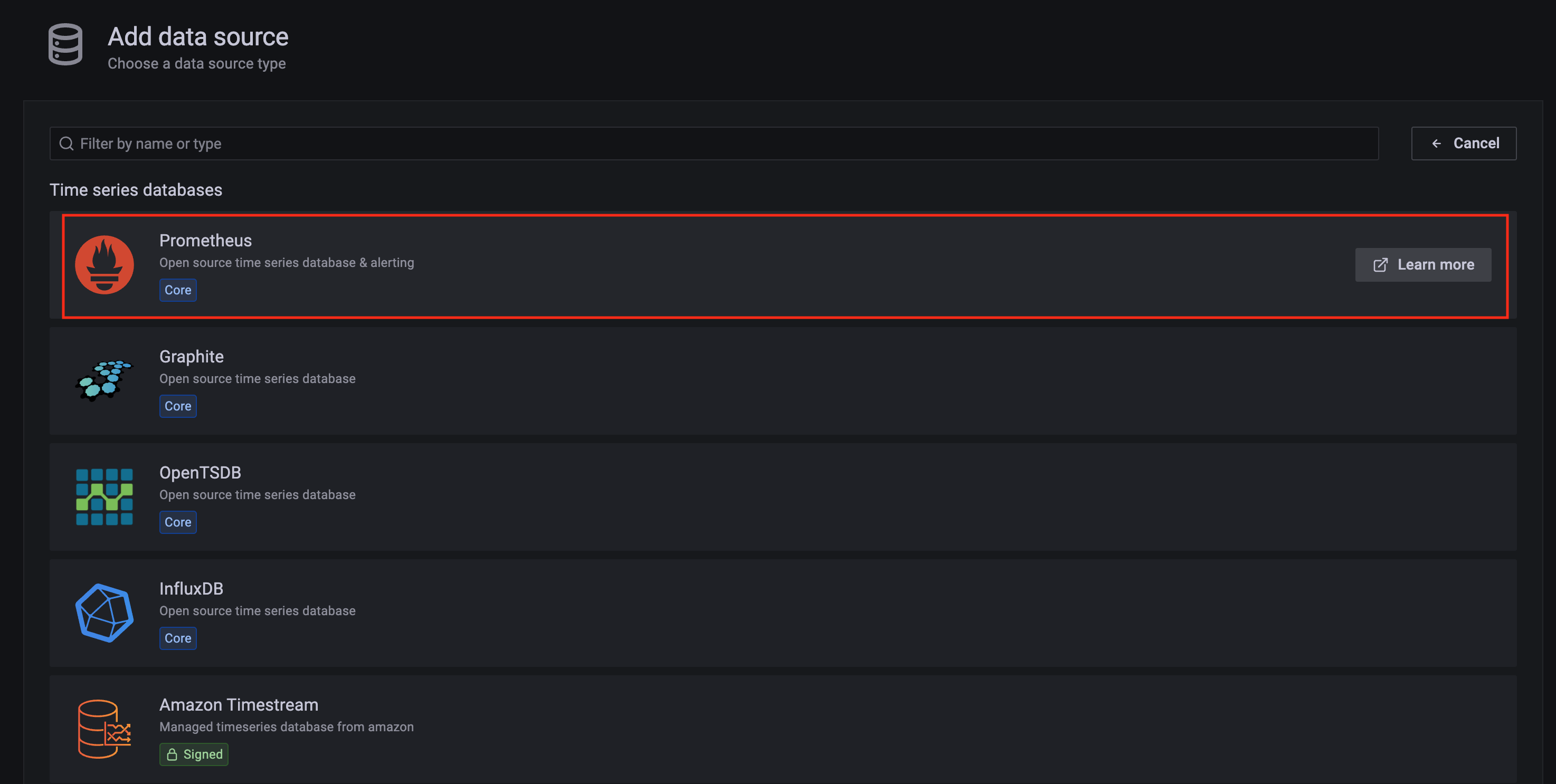

  1. Click on the config sign on the left navigation bar, select Data sources, then choose Prometheus as the Data source.

    ADOT AMG Add Data Source

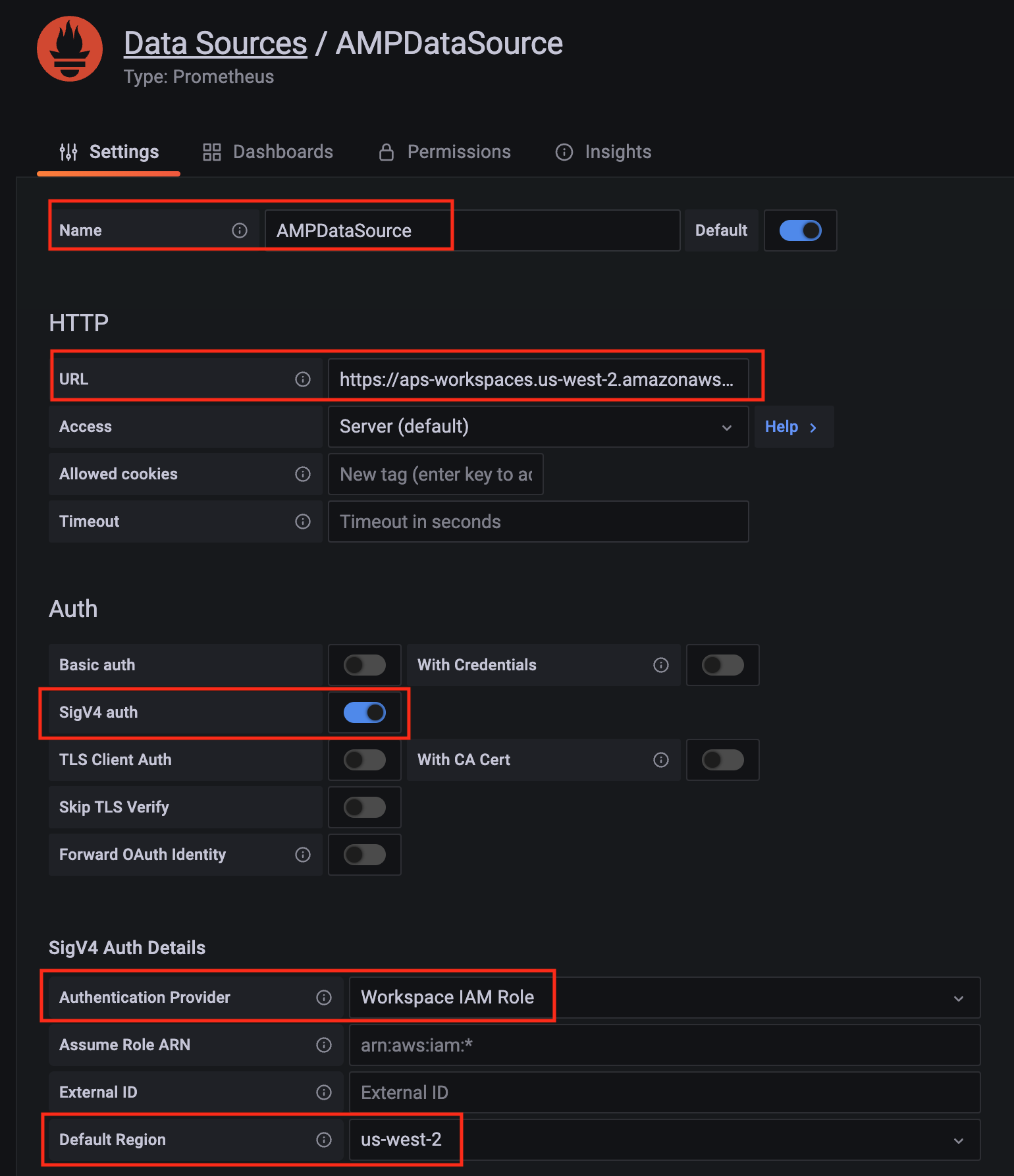

  2. Configure Prometheus data source with the following details:

    • Name: AMPDataSource as an example.
    • URL: add the AMP workspace remote write URL without the api/v1/remote_write at the end.
    • SigV4 auth: enable.
    • Under the SigV4 Auth Details section:
      • Authentication Provider: choose Workspace IAM Role;
      • Default Region: choose us-west-2 (where you created the AMP workspace)
    • Select the Save and test, and a notification data source is working should be displayed.

    ADOT AMG Config Data Source

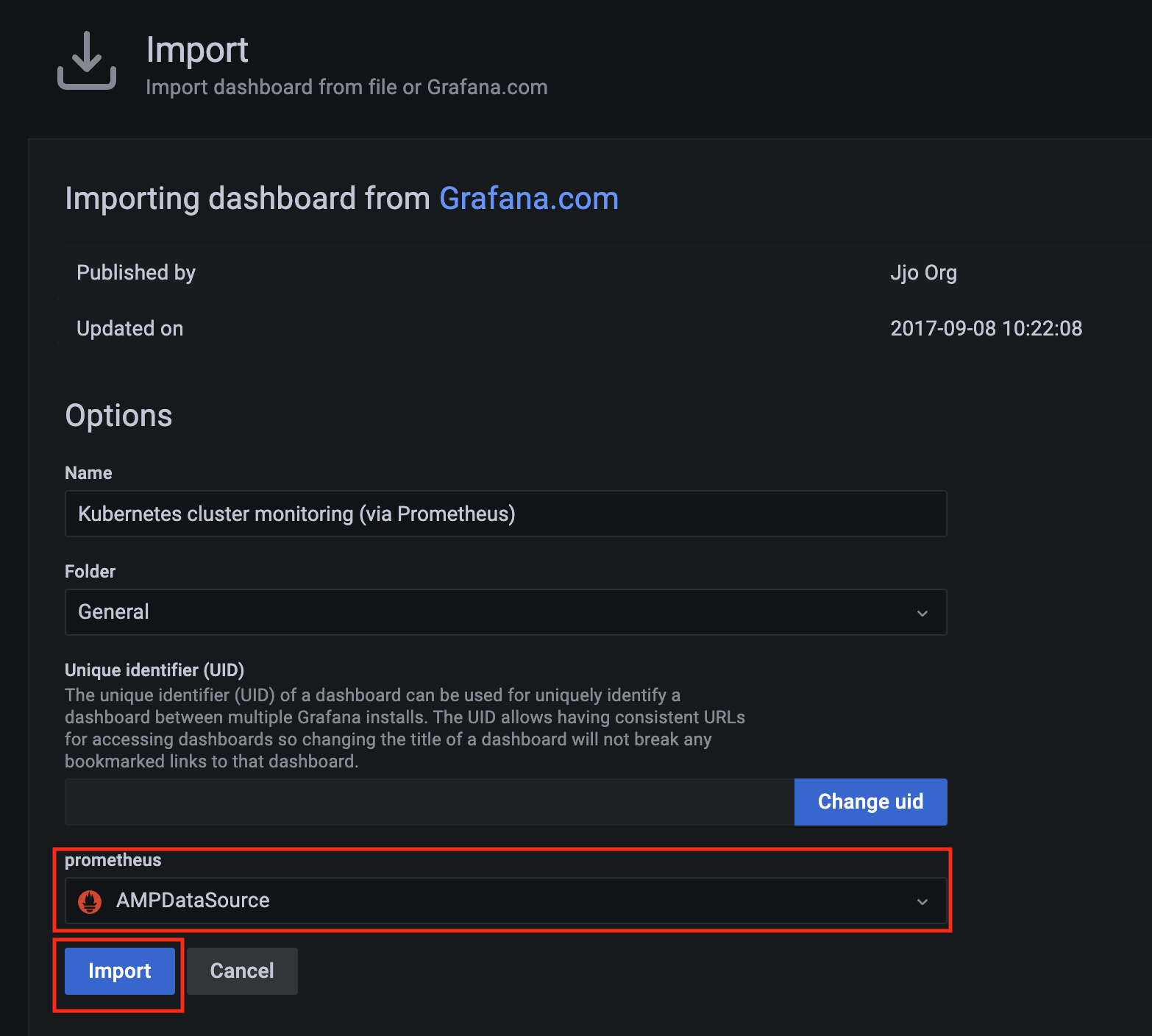

  3. Import a dashboard template by clicking on the plus (+) sign on the left navigation bar. In the Import screen, type 3119 in the Import via grafana.com textbox and select Import. From the dropdown at the bottom, select AMPDataSource and select Import.

    ADOT AMG Import Dashboard

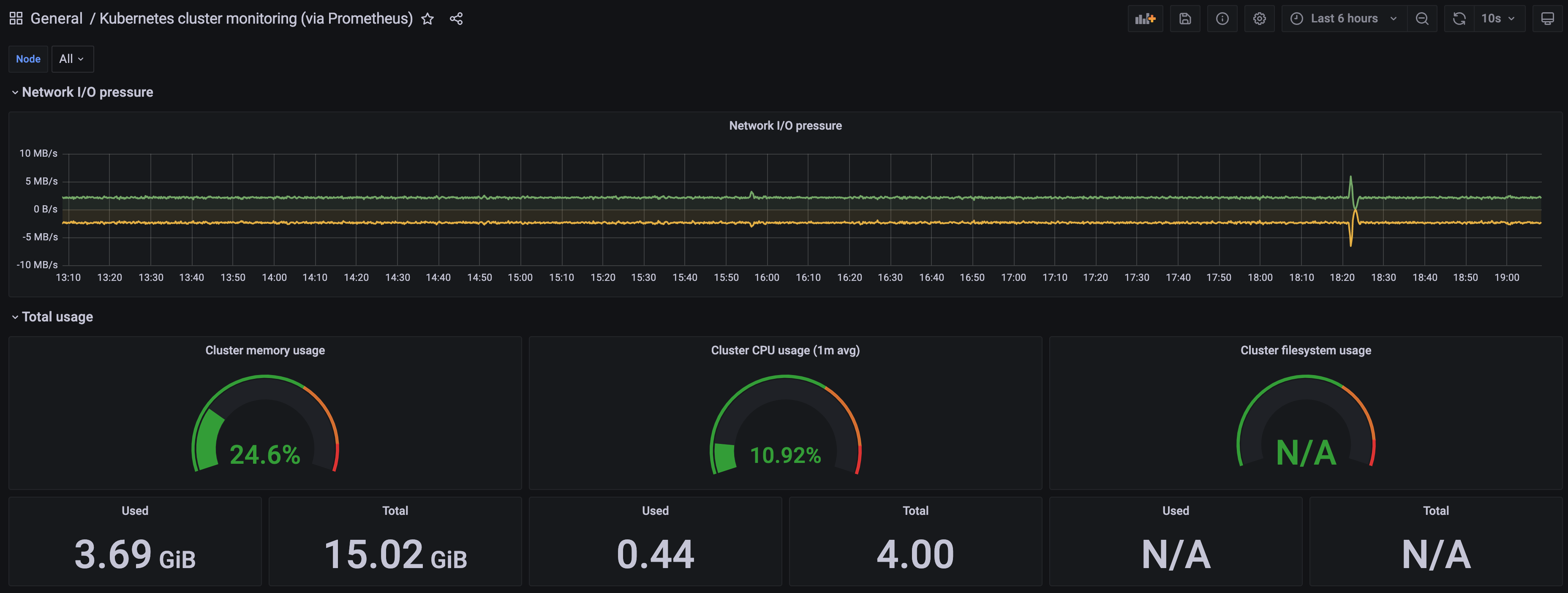

  4. A Kubernetes cluster monitoring (via Prometheus) dashboard will be displayed.

    ADOT AMG View Dashboard
